Sale!
O.S. .95AX Ring 61C E4040
Original price was: $324.99.$77.00Current price is: $77.00.
- Online customer care, always here for you.
- Secure Payments, Secure Shopping
- Free 1 year warranty period
- Product guarantee 100% satisfaction

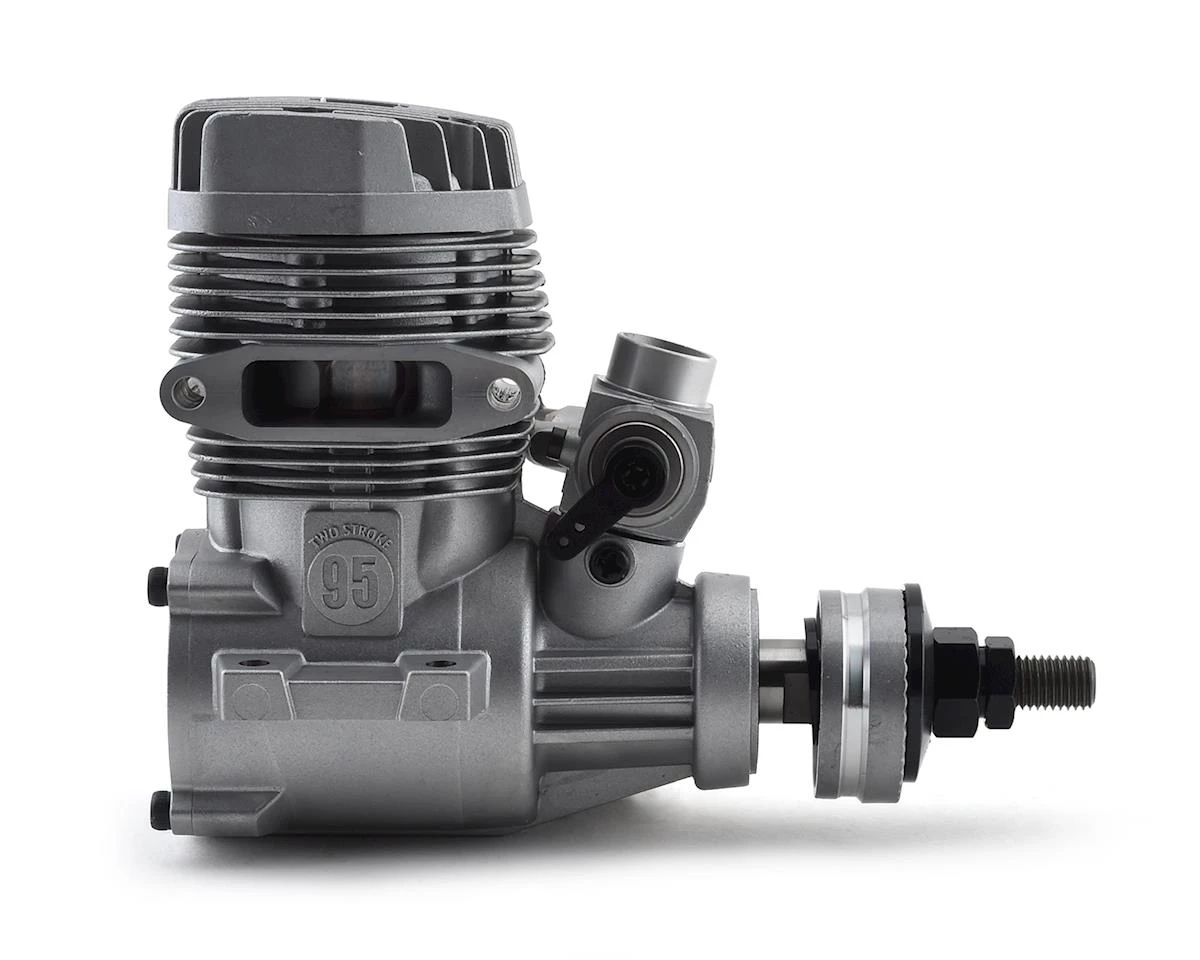

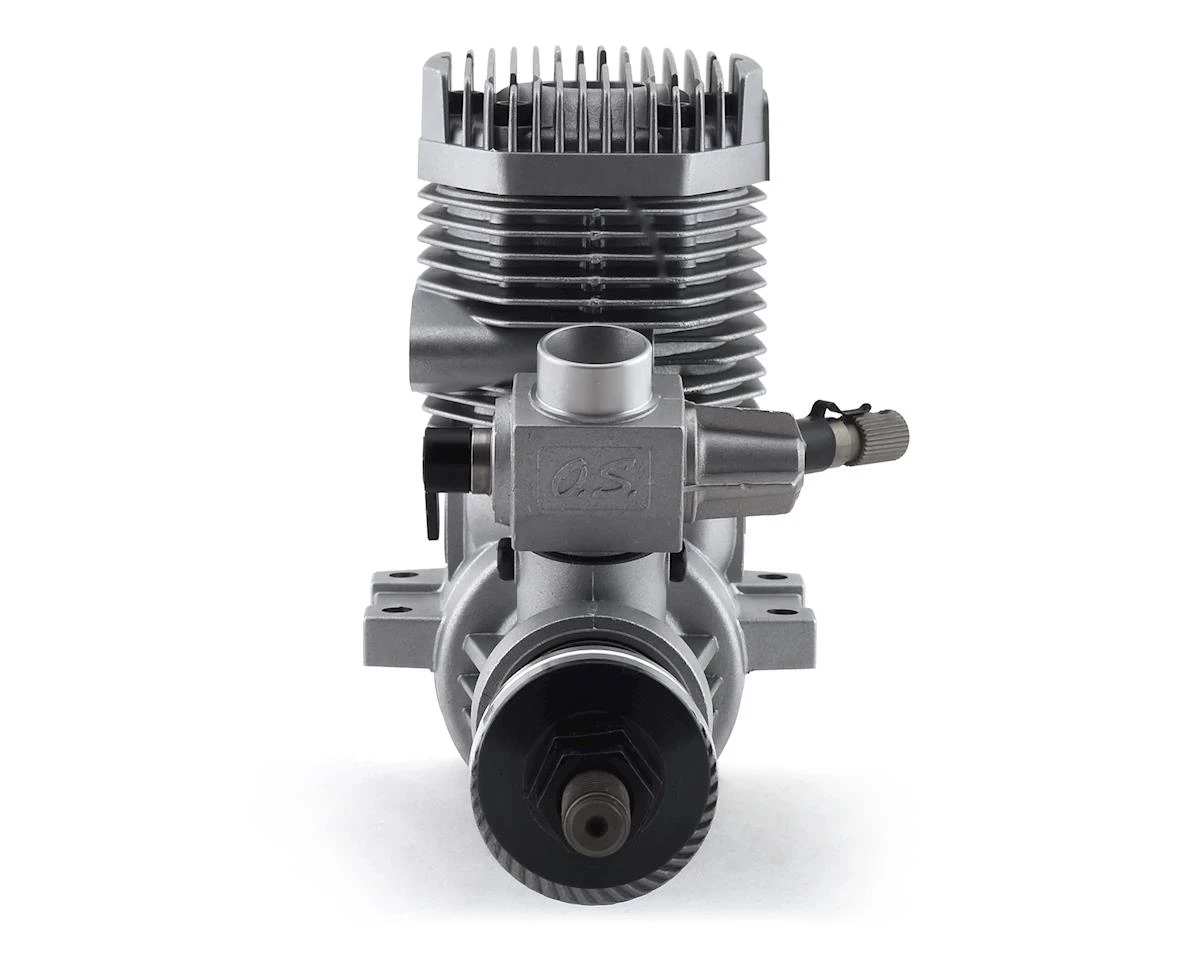

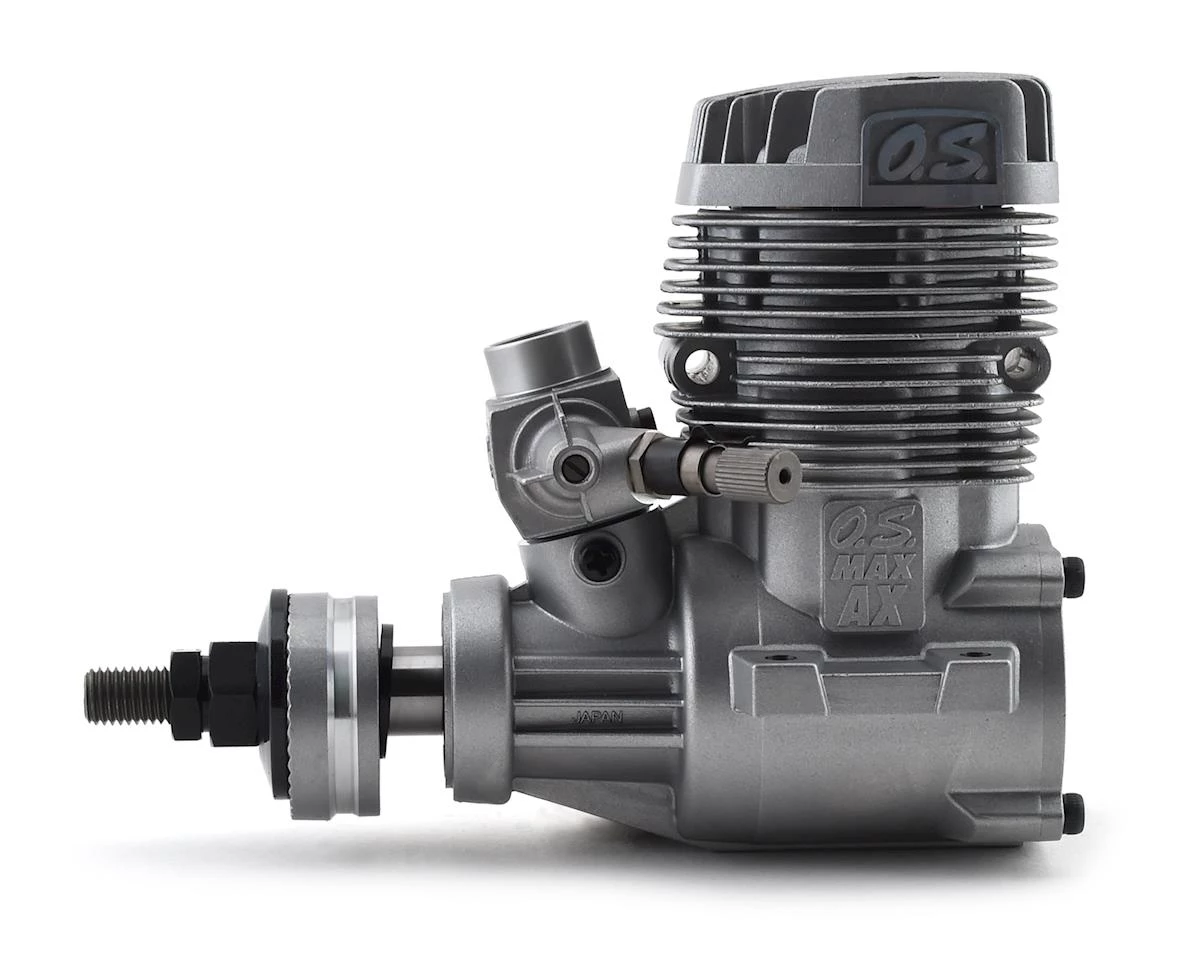

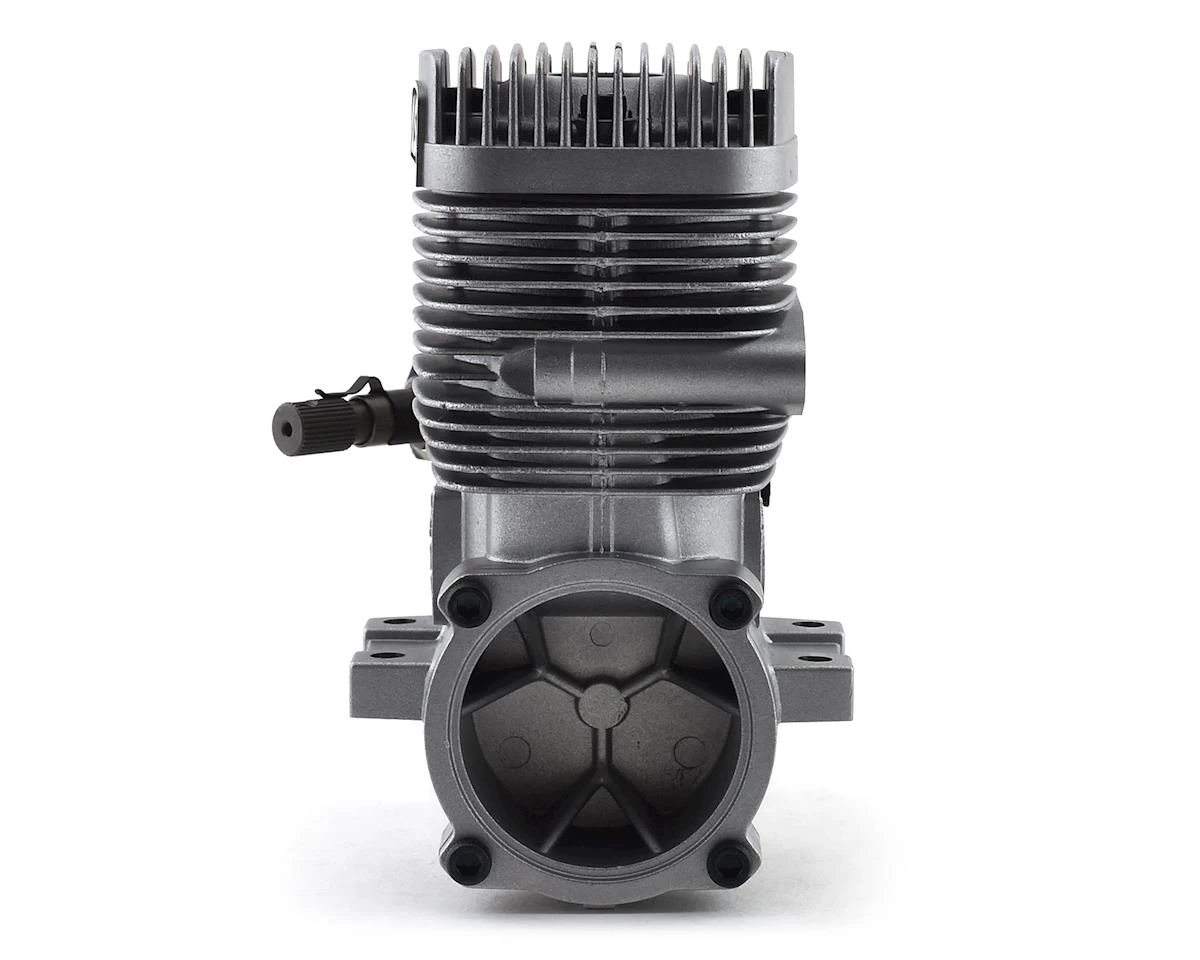

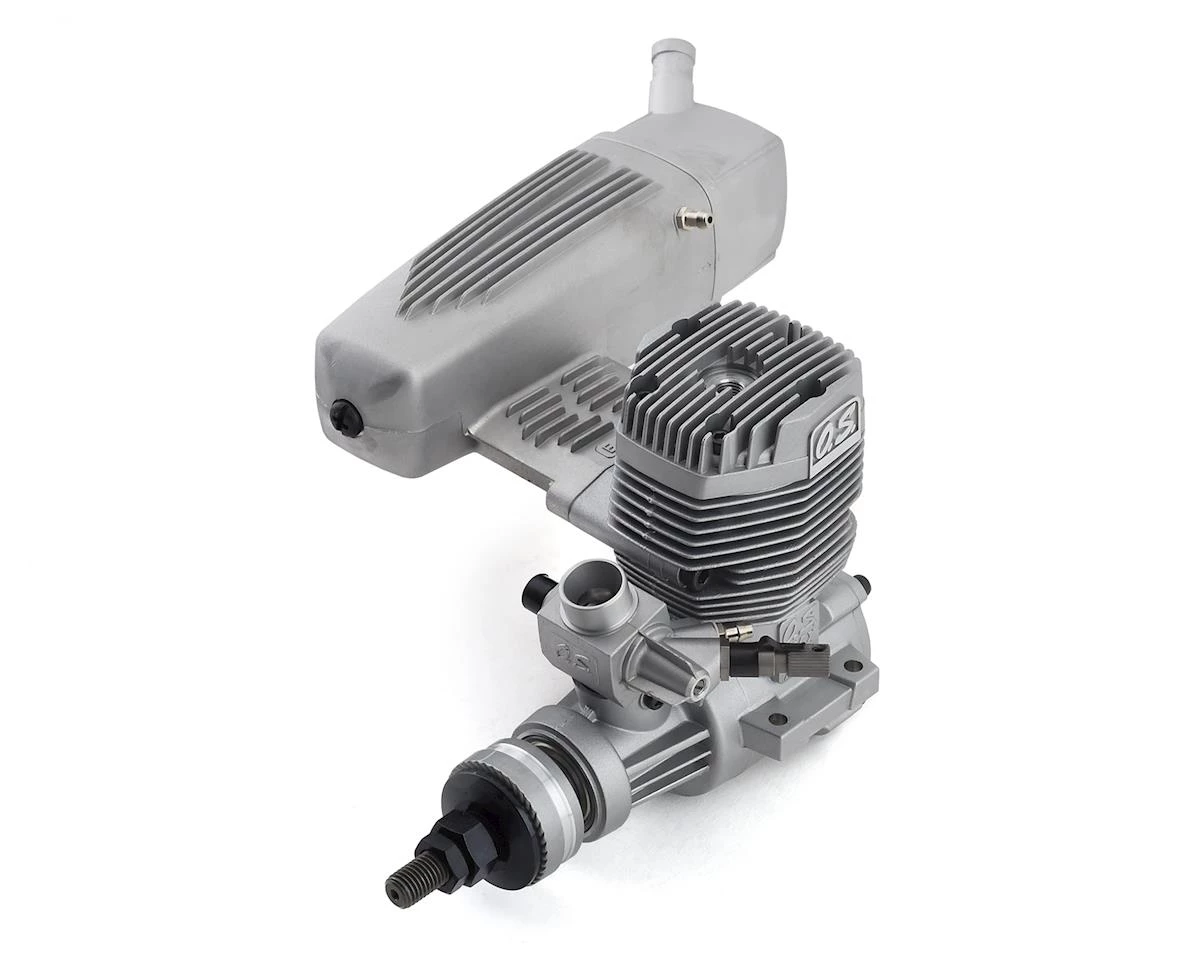

This is the O.S. .95AX Ring 61C E4040, the O.S. Max 95 AX ABL Aircraft Engine with Muffler.
Features:
- Same mounting dimensions as the O.S. Max .75FX
- Power Box muffler design provides more volume for increased power in a very compact shape
- Angular head design offers increased surface area for better cooling
- Ball bearing-supported crankshaft
- 61C carburetor with diagonally placed needle valve eliminating remote needle valve placement
Specifications:
Displacement: 0.949 cu in (15.55cc)
Bore: 1.091″ (27.7mm)
Stroke: 1.016″ (25.8mm)
Practical RPM: 2,000-16,000 RPM
Power Output: 2.9 PS, 2.86 HP/15,000 RPM
Weight Engine: 20oz (567g)
Muffler: 6.28oz (178g)
Recommended Props: 14×8, 15×6-8, 16×6-8
Crankshaft thread size: 5/16-24
Distance from center of engine to drive hub: 2.6″ (66.6mm)
Height from crankcase bottom to top of cylinder head: 4″ (102mm)
Height/crankshaft center to top of cylinder head: 3.2″ (81.3mm)
Width including mounting tabs: 2.4″ (61mm)
Width below mounting tabs: 1.7″ (42.6mm)
Width between mounting holes same side: 0.98″ (25mm)
Width between mounting holes opposite side: 2″ (52mm)
Diameter of muffler body: 1.8″ (45mm)
Distance from Center of Engine to Exhaust Outlet: 4.4″ (112mm)
Angle of muffler in relation to engine: 4°
High Speed Needle: 1.5 – 2 turns out from fully closed
Low Speed Needle: 2mm gap between the needle and spray bar at full throttle (looking down the neck of the carb)

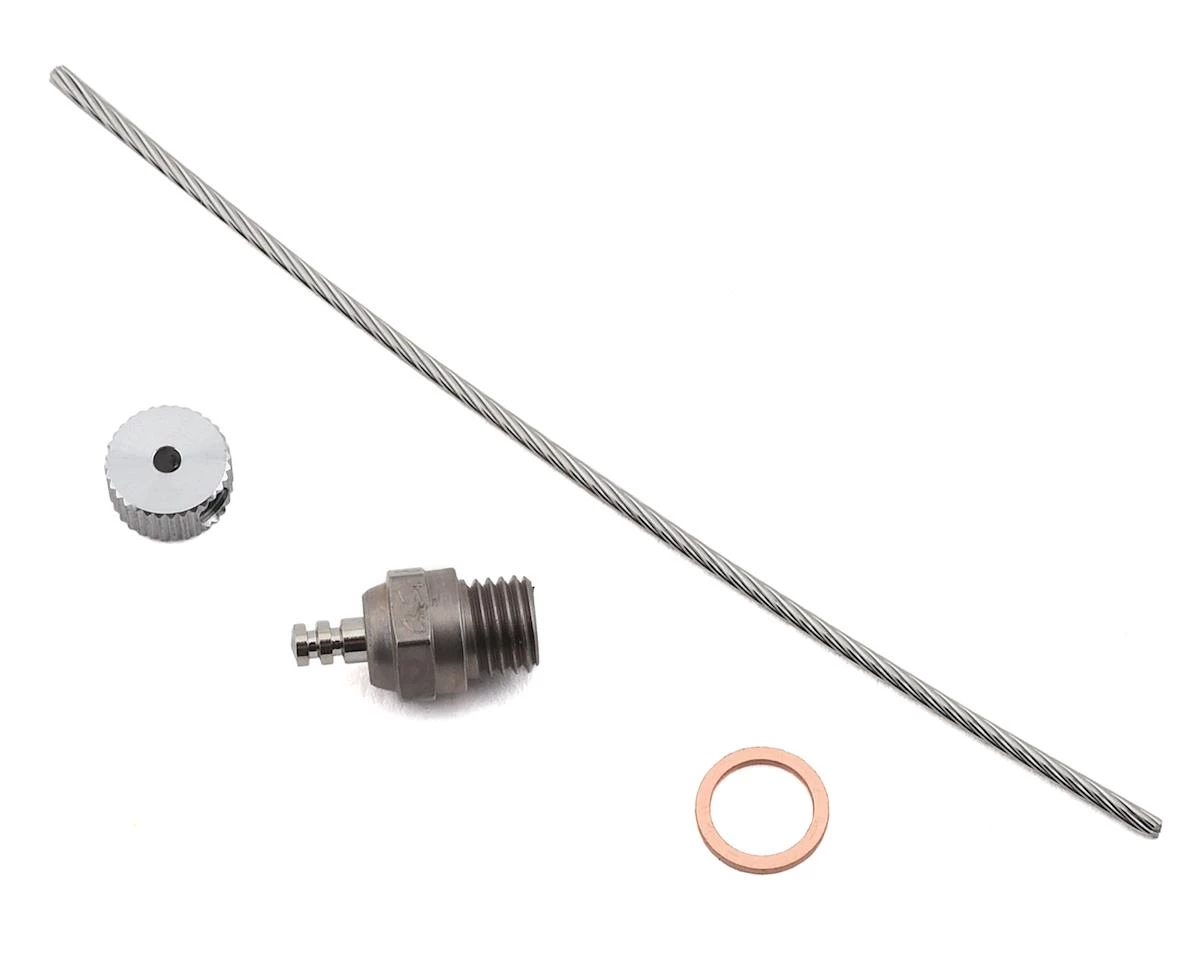

Includes:
- (1) O.S. Max 95 AX ABL Aircraft Engine with E4040 muffler
- (1) Carburetor,
- (1) #8 glow plug,
- (1) Needle valve extension
- (1) Illustrated instruction manual
Needed to Complete:
- Aircraft blend fuel containing 5%-20% Nitromethane with at least 18%
- Lubricant
- Propeller: 14×8, 15×6-8, 16×6-8
- Glow starter and field equipment
This product was added to our catalog on September 17, 2019
